Persistent chat

Persistent chat means messages survive a disconnect. Without it, a Mumble server forgets everything as soon as a user leaves, just like a phone call.

Fancy Mumble does not implement this as a single scheme. The server provides the storage, key-distribution, and rate-limiting machinery, and each channel picks one of three modes that decide how encryption and history work. The modes range from “channel forgets everything” to “server stores the ciphertext” to “end-to-end encrypted via Signal Sender Keys”.

Two layers of configuration

• The server-wide pchat* keys (set via MUMBLE_CONFIG_* env vars, or in mumble-server.ini) only enable the feature and set defaults / safety limits.
• The actual behaviour you experience in a channel is decided by the per-channel pchat_protocol, which is set from the admin UI. A brand-new channel has no protocol (NONE) and stores nothing until an admin picks one.

Server-wide settings

These belong in the environment: block of your docker-compose.yml (or in [server] of mumble-server.ini). They turn the feature on and set defaults; they do not pick a per-channel protocol.

environment:
  MUMBLE_CONFIG_PCHATENABLED: true
  MUMBLE_CONFIG_PCHATREQUIREREGISTRATION: false
  MUMBLE_CONFIG_PCHATDEFAULTMAXHISTORY: 5000
  MUMBLE_CONFIG_PCHATDEFAULTRETENTIONDAYS: 90
  MUMBLE_CONFIG_PCHATMAXPAYLOADSIZE: 1048576

Key	Default	Description
pchatenabled	true	Master toggle for the persistent-chat subsystem. If false, the server rejects every Pchat* message regardless of channel protocol.
pchatrequireregistration	false	If true, only registered users can post into a persistent channel.
pchatdefaultmaxhistory	5000	Default cap on stored messages per channel. Used when a channel is created; admins can override per channel.
pchatdefaultretentiondays	90	Default age cap in days. 0 means “keep forever”. Override per channel.
pchatmaxpayloadsize	1048576	Max bytes per encrypted envelope (1 MB). Image attachments are base64-encoded inside the envelope, so size this for the largest inline attachment you want to allow.
pchatpendingkeyrequestmaxdays	7	How long an unfulfilled key-distribution request lingers before cleanup.
pchatpendingfulfilledmaxhours	24	How long a fulfilled key-distribution request stays around (so late joiners can pick it up).
pchatperuserpending	5	Hard limit on simultaneous outstanding key requests per user.
pchatperchannelpendingsoftcap	100	Soft cap on outstanding key requests per channel; prevents request floods.

A small set of token-bucket rate limits is also applied on the server (msg: 30 / 60s, fetch: 10 / 60s, key_announce: 5 / 60s, key_exchange: 20 / 60s). These are not currently configurable.

Channel modes

Each channel has one persistence mode, chosen from the channel editor in the admin UI. New channels default to None and store nothing until an admin picks a mode.

Choosing a mode

	None	Full Archive Experimental	Signal V1
History for newcomers	-	Yes - full log up to the retention limit.	No - brand-new joiners get no backlog.
Missed messages on reconnect	-	All missed messages are delivered by the server on reconnect - nothing is lost.	Automatically pushed on reconnect for existing members.
Server holds messages	-	Yes, as encrypted ciphertext the operator cannot read.	Only a short-lived offline queue; no permanent archive.
If the server is seized	-	Encrypted ciphertext is exposed (unreadable without the channel key).	Only the transient queue exists - no full history to hand over.
Works without Fancy Mumble	Yes (live chat only)	Read-only if senders enable dual-path (see below) - no history, cannot send encrypted.	Read-only if senders enable dual-path (see below) - voice only otherwise, cannot send encrypted.
Setup	Nothing to do.	Set the mode, optionally add key custodians.	Requires the signal-bridge library on every client.
Best for	Ephemeral voice rooms.	Community and support channels where history is useful.	Small private groups where “no trace on the server” matters most.

When in doubt, pick Full Archive - but note it is experimental

Full Archive gives users the familiar “scroll up to catch up” experience with messages encrypted at rest. However, it is currently experimental and unaudited - treat it as transport encryption rather than true E2EE. Switch a channel to Signal V1 for any channel where verified end-to-end encryption matters.

Technical reference

Mode (UI label)	Wire value	Server stores ciphertext?	Backfill on join	Key distribution
None (standard volatile chat)	none	-	-	-
Full Archive (all messages) Experimental	fancy_v1_full_archive	yes	full history (subject to retention / message-count cap)	HMAC challenge against an online key custodian; relay cap scales with online member count
Signal V1 (E2EE via Signal Protocol)	signal_v1	no - offline queue only	none for new joiners; existing members receive queued messages on reconnect	Signal Sender Keys via libsignal-protocol; auto-verifies on PchatKeyHolderReport; relay cap 3

Deprecated wire values

The protobuf enum also defines fancy_v1_post_join and server_managed for backwards compatibility. The client UI does not expose them; treat them as deprecated.

Things that often surprise people:

• “None” is the channel default. The server-wide pchatenabled flag has no effect on a channel until an admin sets its mode.
• Neither persistent mode is readable by the server. Full Archive stores opaque encrypted envelopes; Signal V1 never writes a permanent archive at all.
• Signal V1 has an offline queue, not a searchable archive. When a message is sent the server queues it for every known offline key holder in PChatOfflineQueueTable. On reconnect, the server drains the queue and bundles the Sender Key Distributions (SKDMs) needed to decrypt each message - no online member required. A first-time joiner receives nothing; there is no backlog to send.

Encryption schemes

The two persistent modes differ in who holds keys and where messages live.

Full Archive Experimental

Not recommended - experimental with potential security issues

Full Archive (fancy_v1_full_archive) is currently not recommended for production use. The custom encryption scheme it uses has not undergone a formal security audit, and the key-distribution flow has known edge cases that can expose the channel key to a malicious server operator.

Until a full audit is completed, treat Full Archive as transport encryption only - not end-to-end encryption. The server operator could, in principle, intercept keys and read message content. Use Signal V1 for any channel where true E2EE guarantees matter.

• The server keeps an opaque encrypted envelope per message, plus a small amount of metadata (message_id, channel_id, sender_hash, timestamps, optional replaces_id).
• Symmetric channel keys are held by key custodians - a list of TLS certificate hashes attached to the channel (pchat_key_custodians). When a new member joins, they emit a PchatKeyRequest; the server relays it to online custodians up to a relay cap that scales with the number of online members. A custodian answers with a PchatKeyExchange, preceded by a PchatKeyChallenge (HMAC challenge so the custodian knows it is talking to a legitimate session).
• If no custodian is online, the request is queued (pchatpendingkeyrequestmaxdays) and replayed when one connects.
• Trust model: the server is honest-but-curious. It cannot read messages, but a malicious operator could replace the binary and intercept future key-exchange traffic. This is the same trust model as virtually every “encrypted at rest” group chat.

Signal V1

• Uses the Signal protocol’s Sender Keys for group messaging, via signalapp/libsignal.
• Because libsignal is AGPL-3.0, Fancy Mumble ships it as a separate shared library - signal-bridge - built from crates/signal-bridge as a cdylib and loaded at runtime via libloading. The MIT- licensed Fancy Mumble client links to it dynamically; the AGPL obligations stay scoped to that one .dll / .so / .dylib.
• The server does not permanently store Signal V1 messages as a searchable archive. However, it does queue encrypted envelopes for known offline members (existing key holders) in a transient offline queue. When a known member reconnects, the server drains that queue and bundles the Sender Key Distributions (SKDMs) for each sender whose messages appear in it, so the client can decrypt them without needing any other member online. Fetch requests (history) against a Signal V1 channel still return empty - the offline queue is a push, not a pull.
• A client without signal-bridge available cannot participate in a Signal V1 channel at all (it can still join the channel for voice).

Note

“Encryption uses the Signal protocol” is only true for channels in Signal V1 mode. Full Archive uses a different, custom scheme that is not libsignal.

Per-channel settings

In addition to picking a mode, an admin can set:

UI field	Wire field	Default source	Meaning
Protocol	pchat_protocol	none	Which mode applies to this channel.
Max history	pchat_max_history	pchatdefaultmaxhistory	Max messages kept (Full Archive only).
Retention days	pchat_retention_days	pchatdefaultretentiondays	Max age in days; 0 = forever (Full Archive only).
Key custodians	pchat_key_custodians	empty	TLS cert hashes of users that hold and distribute the channel key.

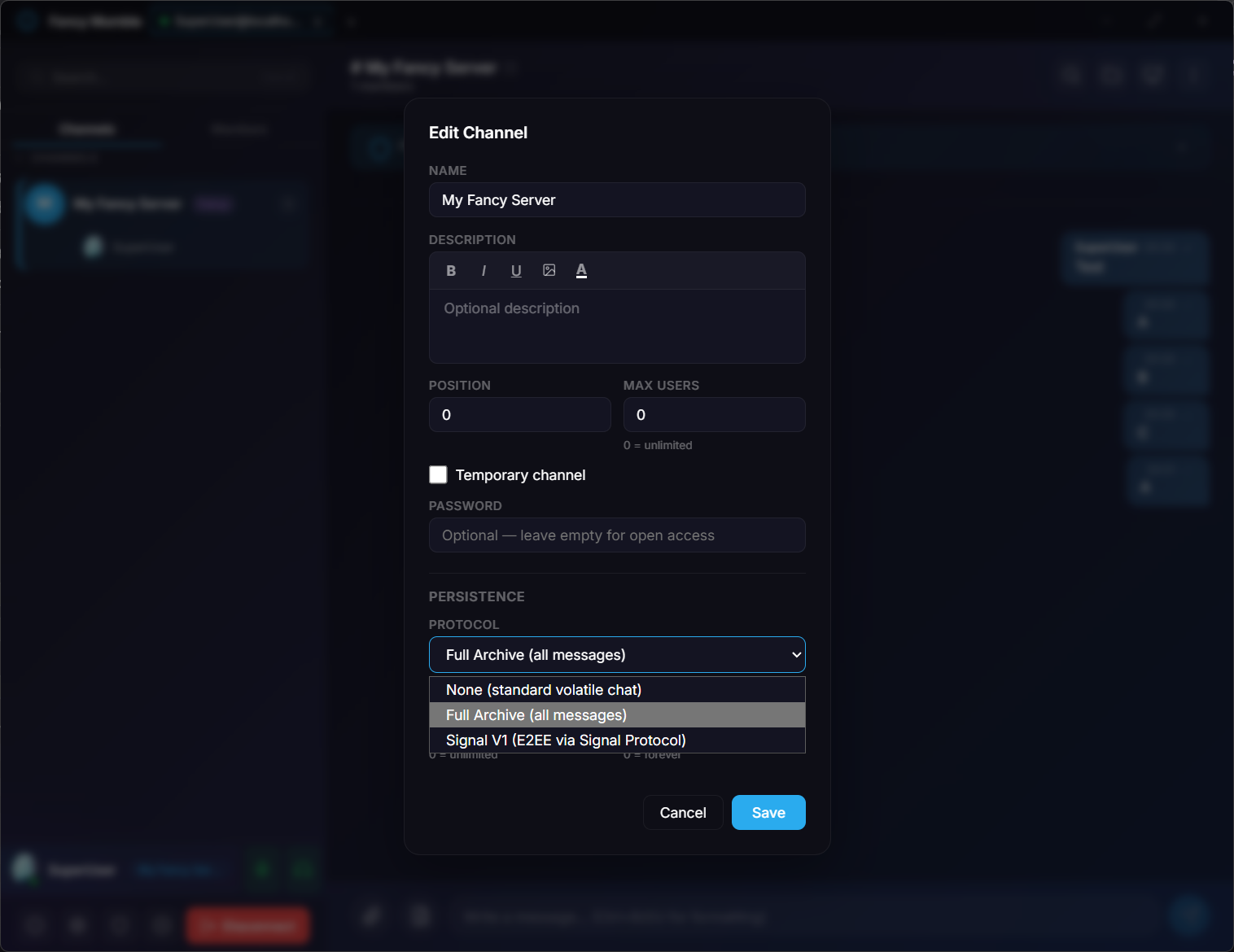

To set them:

1. Open the channel editor (right-click a channel → Edit).
2. Open the Protocol dropdown and choose:
   • None (standard volatile chat) to disable persistence on this channel.
   • Full Archive (all messages) for an open searchable log; the server stores encrypted ciphertext.
   • Signal V1 (E2EE via Signal Protocol) for group E2EE. Missed messages are queued and pushed on reconnect; new joiners see no history.
3. Set Max history and Retention days (ignored for Signal V1).
4. Add the cert hashes of the Key custodians that should answer join-time key requests (Full Archive only; for Signal V1 the existing online members serve the same role automatically).
5. Save.

Storage

For Full Archive channels, encrypted envelopes live in the same SQLite database as the rest of the server state, at /data/mumble-server.sqlite inside the container. The schema includes separate tables for messages, user keys, member-join records, key-holder lists, pending-key-requests, the offline delivery queue, reactions, and pins.

For high-traffic servers point the server at PostgreSQL by setting MUMBLE_CONFIG_DBDRIVER=QPSQL and friends.

A rough sizing guide:

• Each encrypted text envelope is roughly 200–400 bytes on disk including indexes and metadata.
• 10 000 messages per day on a busy server is about 3 MB per day, so about 1 GB per year before reactions / images.
• Inline images are base64-encoded inside the envelope. They will dominate disk usage if allowed; size pchatmaxpayloadsize accordingly.

Plan disk space, and back the volume up regularly. See Upgrade & backup.

Signal V1 channels store nothing at rest, so they contribute zero to ongoing disk usage.

Disabling persistence on a single channel

To turn persistence off for a sensitive channel without touching the server-wide config, set the channel’s Protocol back to None (standard volatile chat). Existing stored ciphertext is not deleted by toggling - the server simply stops accepting new messages and stops serving fetches for that channel. To clear stored history, use the admin “Purge channel” action.

Disabling persistence server-wide

environment:
  MUMBLE_CONFIG_PCHATENABLED: false

This makes the server reject every Pchat* message. Existing rows are not deleted, so you can re-enable later without data loss.

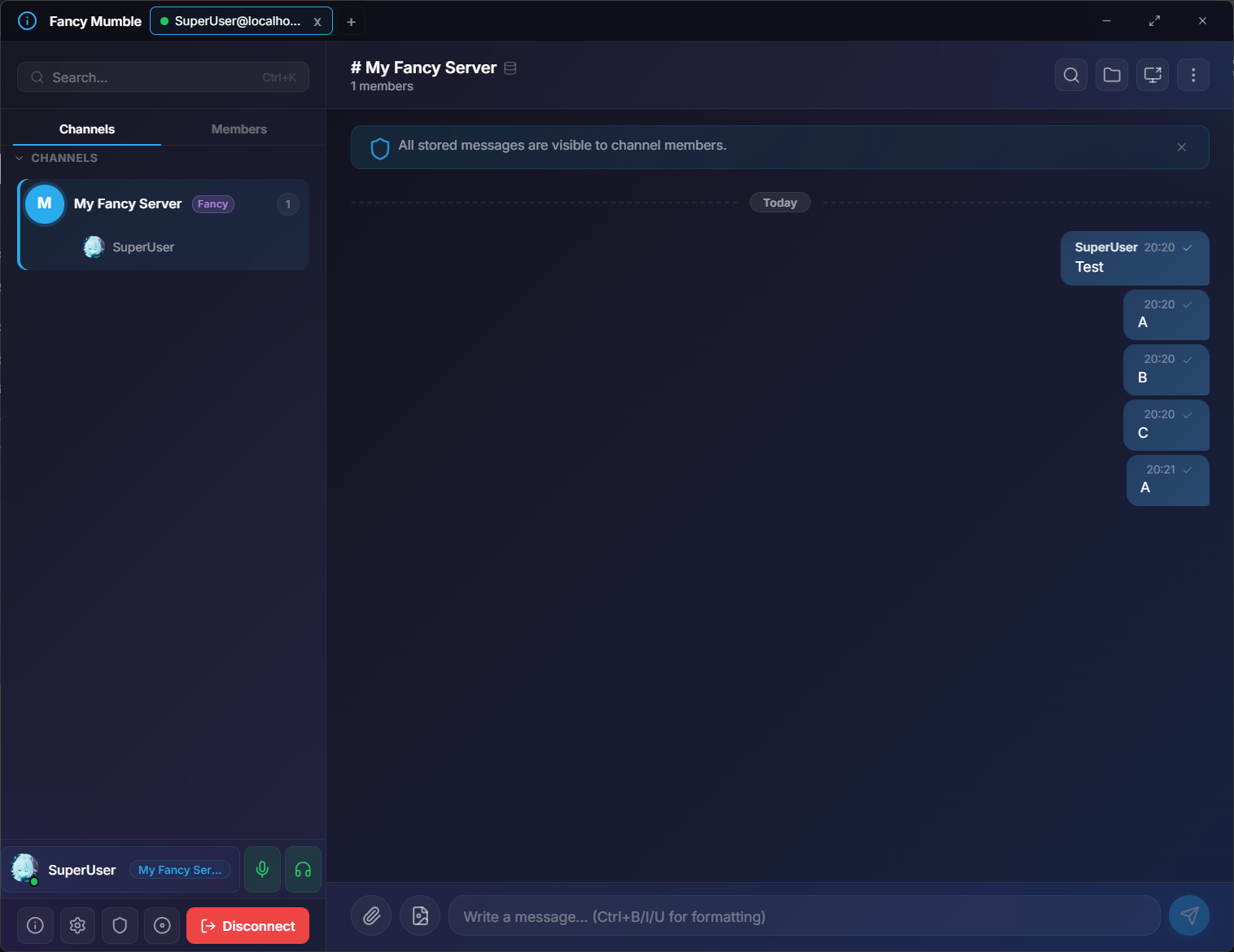

What clients see

Client	History on a Full Archive channel	Live chat in a Signal V1 channel
Fancy Mumble (desktop / Android, with signal-bridge)	yes	yes
Fancy Mumble built without signal-bridge	yes	no - channel is voice-only for them
Vanilla Mumble	no	no
Other forks	depends on whether they implement the Pchat* proto messages	almost certainly no

Vanilla Mumble users still see live TextMessages in real time on any channel - Pchat* is an additive layer on top of the existing text-message wire protocol.

Dual-path sending

Users can enable dual-path sending in Settings → Privacy → Enable dual-path sending. When on, every message sent in an encrypted channel is also sent as a plain TextMessage whose body is replaced with [Encrypted message]. Legacy clients (vanilla Mumble, older forks) then show that placeholder instead of seeing nothing at all.

Dual-path is off by default. Users who want strict ciphertext isolation - so that no unencrypted traffic for the channel ever traverses the normal message path - should leave it disabled.

Common pitfalls

• “My channel doesn’t keep history.” Check the channel’s Protocol, not just pchatenabled on the server. A new channel defaults to None.
• “Signal V1 shows no history when I reconnect.” For existing members the server queues missed messages and delivers them on reconnect automatically - if you see nothing, check that your signal-bridge library loaded correctly. If you are a brand-new joiner, that is expected: there is no backlog for first-time joins.
• “Key request just hangs.” For Full Archive: no key custodian is online; the request stays queued until one connects (up to pchatpendingkeyrequestmaxdays). For Signal V1 - new joiner: no online channel member is available to distribute the Sender Key; the request is similarly queued. Existing reconnecting Signal V1 members do not need a key request - the server bundles the necessary sender keys with the offline message queue automatically.
• “History grows forever.” pchatdefaultretentiondays (or the channel’s pchat_retention_days) is 0. Set a value, then cleanup runs daily.
• “Cannot delete a message.” The channel’s delete ACL does not include your role. See Roles & permissions.
• “Plugin keys aren’t picked up via env vars.” They are - the Fancy Mumble Docker entrypoint accepts every key in the upstream mumble-server.ini, including pchat*. See Configuration reference.

Next step

Continue with Push notifications.
